Spare part
Dowelmax Drill Guide and Center Block Package
Regular price $80.00 USD
1/4

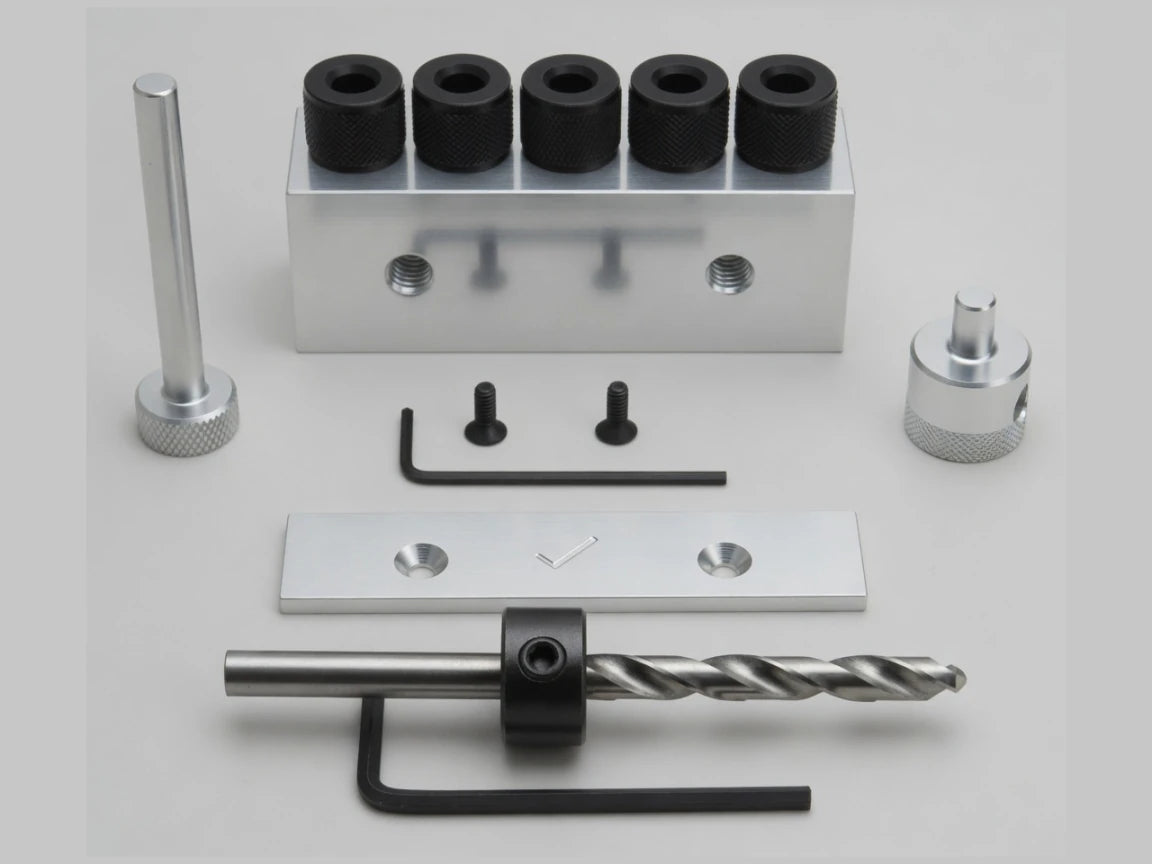

Dowelmax 1/4 Drill Guide Package now includes a specially priced center guide block for quicker and more convenient changeovers.
1/4 Drill Guide Package includes (1) a drill and collar, (2) an index pin, (3) a distance gauge base, (4) a 1/8 spacer for centering on 1/2″ wood (also on 5/8″ when used in combination with the 1/16 brass shims), (5) five precision CNC bored drill guides, and (6) a center guide block.
Our drill guides are CNC bored to within .002″ tolerance, hardened to 45 Rc for a lifetime of use, and then black oxide coated.
5/16

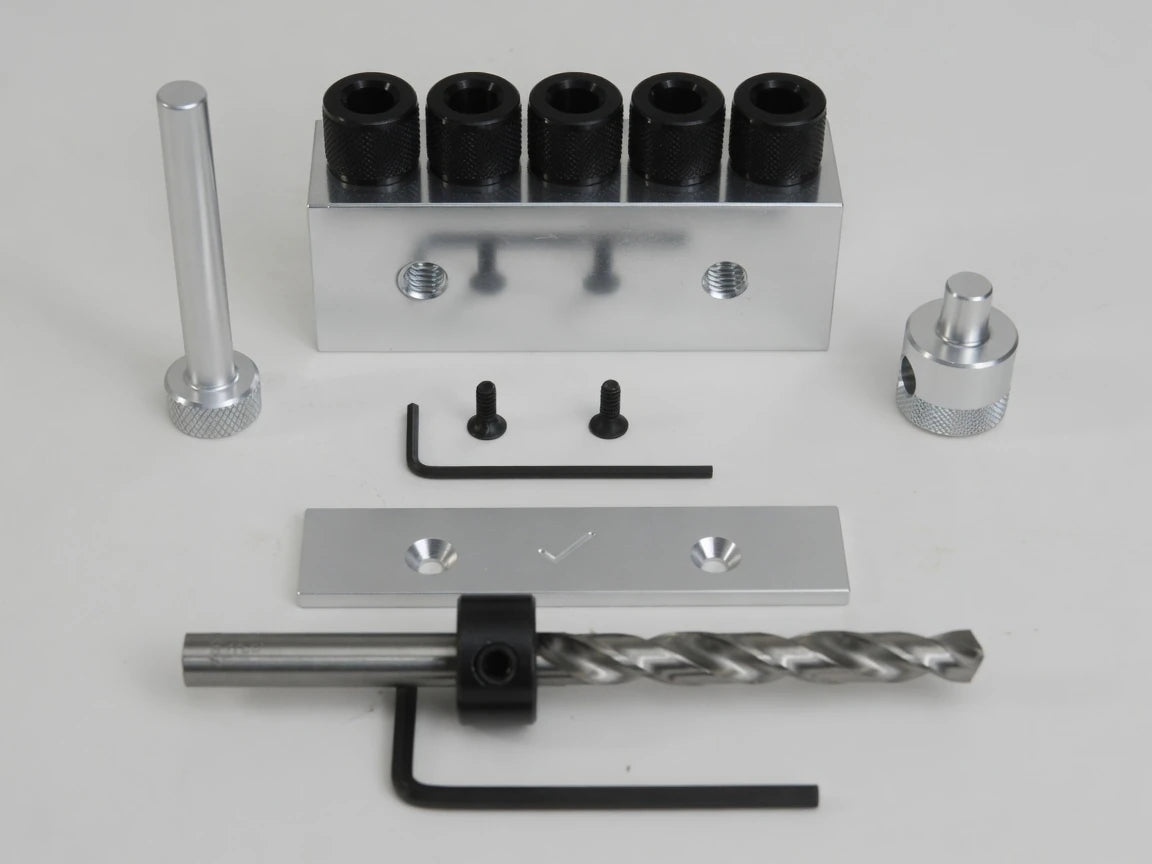

Dowelmax 5/16 Drill Guide Package now bundled with a specially priced center guide block for quicker and more convenient changeovers.
5/16 Drill Guide Package includes (1) 5 hardened and black oxide coated 1-3/4 inch long precision steel drill guides (2) high quality HSS drill bit with collar (3) index pin (4) distance gauge base (5) 1/8 spacer plate for 1/2″ centering (and 5/8″ when combined with 1/16″ spacer) (6) 2 x cap screws (7) 2 x allen wrench.
1/2

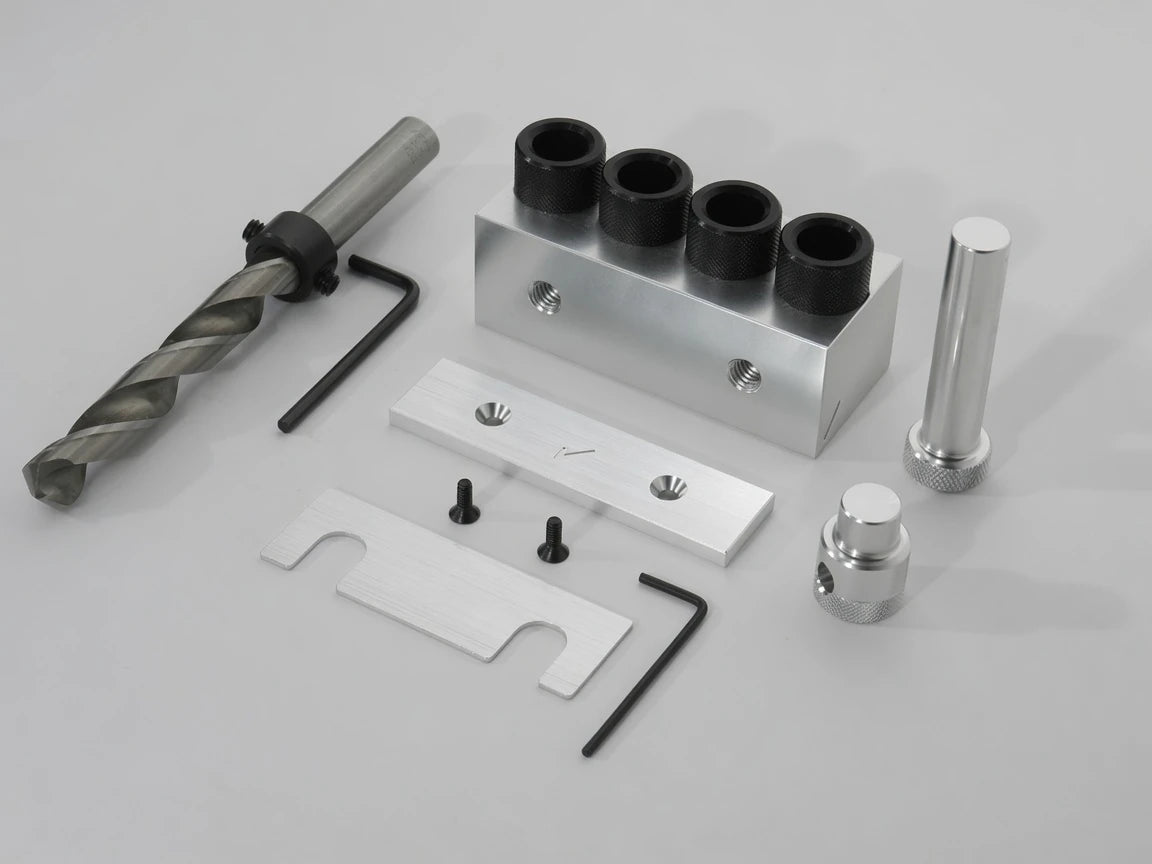

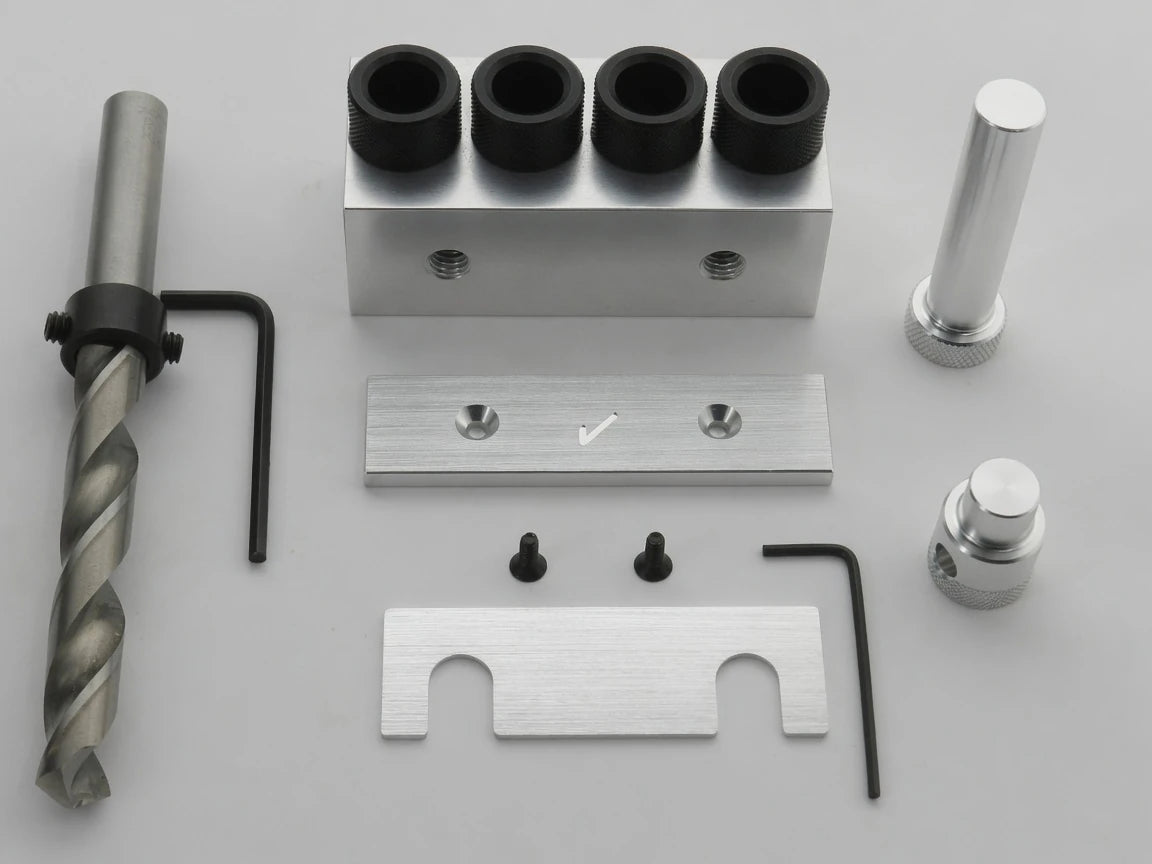

Dowelmax 1/2 Inch Drill Guide Package for Use with Dowelmax Classic main systems.
Contents:
– Four Machined, Hardened and Black Oxide Coated 1/2 Inch Steel Drill Guides
– 6061 Machined and Anodized Reference Block
– 6061 3/16″ Machined and Anodized Offset Spacer
– 6061 1/16″ Machined and Anodized Offset Spacer
– 6061 1/2 Inch Machined and Anodized Index Pin
– 6061 1/2 Inch Machined and Anodized Distance Gauge Base
– TDC JEFF 1/2 Inch Drill Bit with Steel Stop Collar
– Attachment Hardware
6 mm
The 6 mm drill guide package now includes a specially priced center guide block for quicker and more convenient change overs.
The 6 mm drill guide package includes (1) a drill and collar, (2) an index pin, (3) a distance gauge base, (4) a 3 mm spacer for centering on narrower wood (also on 16 mm when used in combination with the 1.5 mm brass shims), (5) five precision CNC bored drill guides and (6) center guide block.
Dowelmax drill guides are CNC bored to within .002″ tolerance, hardened to 45 Rc for a lifetime of use, and then black oxide coated.
8 mm

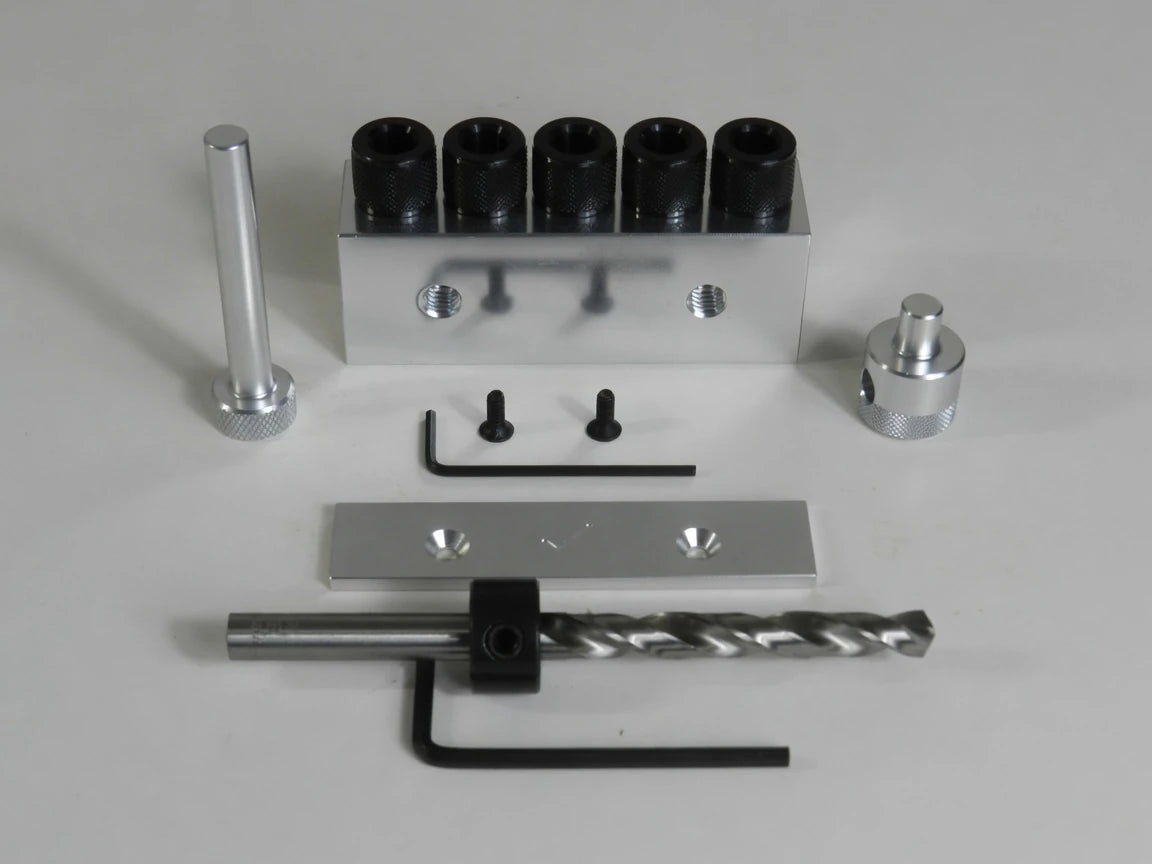

The 8 mm drill guide package now includes a specially priced center guide block for quicker and more convenient changeovers.
The 8mm drill guide package includes (1) a drill and collar, (2) an index pin, (3) a distance gauge base, (4) a 3 mm spacer for centering on narrower wood (also on 16 mm when used in combination with the 1.5 mm brass shims), and (5) five precision CNC bored drill guides, and (6) center guide block.
Our drill guides are CNC bored to within .002″ tolerance, hardened to 45 Rc for a lifetime of use, and then black oxide coated.
- Ships small packet air worldwideDrill guide packages and spare parts ordered on their own ship Small Packet air at a lower rate than a full system.
- Limited lifetime warrantyLifetime against defects or wear on joining system components. Hardened steel drill guides, 5 years. Excludes the drill bit.
- Order by phone if you preferToll free 1-877-986-9400. We answer emails the same day, or within 24 hours.
Dowelmax Drill Guide and Center Block Package
1/4
Compatibility
What this fits
Not sure this part fits your jig? Tell us which system you own and we will confirm before you order. 1-877-986-9400 dowelmax@gmail.com
Specifications
| Drill guide bore tolerance | .002″ |
|---|---|
| Hardness | 45 Rc |
| Finish | Black oxide coated |
