How to Build a Plant Stand with Cabriole Legs

We have a plant stand in our home from the Bombay Company, and the lines of this stand have always appealed to me. However the construction is somewhat lacking, i.e. the top plate appears to be veneered MDF, the joints are secured by bolts and the lower plate is secured by screws. To me, these methods are unacceptable.

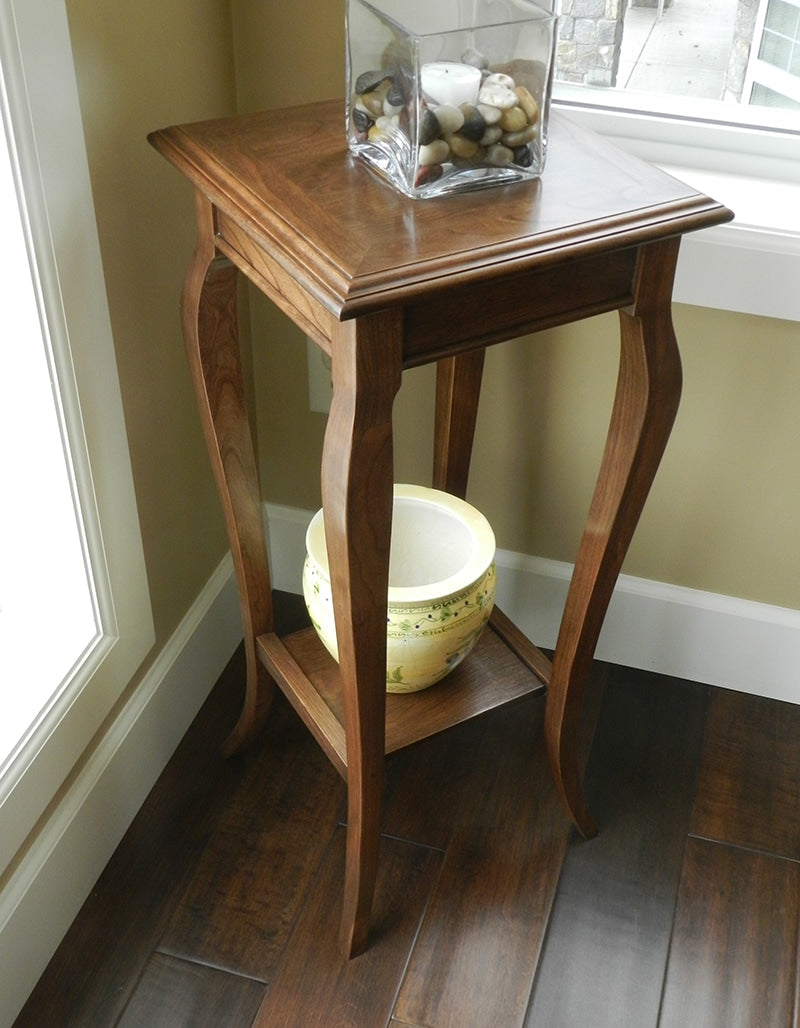

In this instructional article, we will describe how to build a new plant stand using improved materials and stronger joinery using our multiple dowel system and 100% dowel construction to build the project.

Great care has to be taken in constructing and shaping the cabriole legs, however the procedure appears more difficult than it actually is.

LAMINATING BOARDS TO FORM PLANT STAND LEGS

The legs are 27 1/2 inch high and since I don't have 2 to 3 inch solid cherry, it is necessary to use a lamination. I am using 3 – 7/8" x 2 1/2" x 32" work piece laminations.

It is necessary to mill the 3 components the exact same width, i.e. 2 1/2", this for 2 reasons: (1) Glue and clamp. I begin by clamping the edges of the 3 pieces in order to prevent these components splaying or skewing when clamping the glued faces. (2) This simplified the milling and truing procedures after curing. The initial cuts are done on the table saw and finalized on the planing machine.

CALIBRATE TABLE SAW BLADE

Prior to milling the square section, use a machinist's set square to ensure that the table saw blade is absolutely vertical and at 90 degrees to the bedplate.

PLANT STAND CABRIOLE LEG TEMPLATE

I have cut a template for the cabriole legs from 1/4 inch hard board; this to ensure all the compound curvatures will be almost identical. Note that although the design incorporates various compound curves, one template only is required.

DRAW CABRIOLE LEG SHAPE USING TEMPLATE

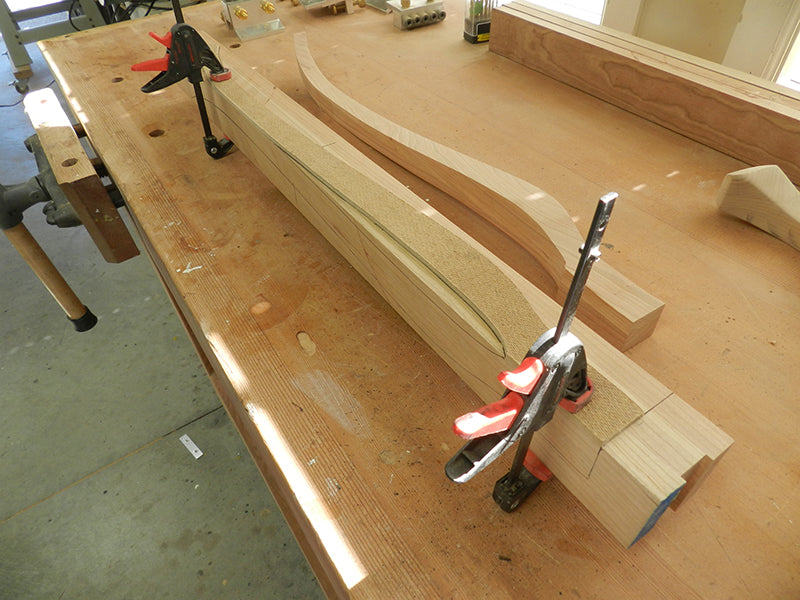

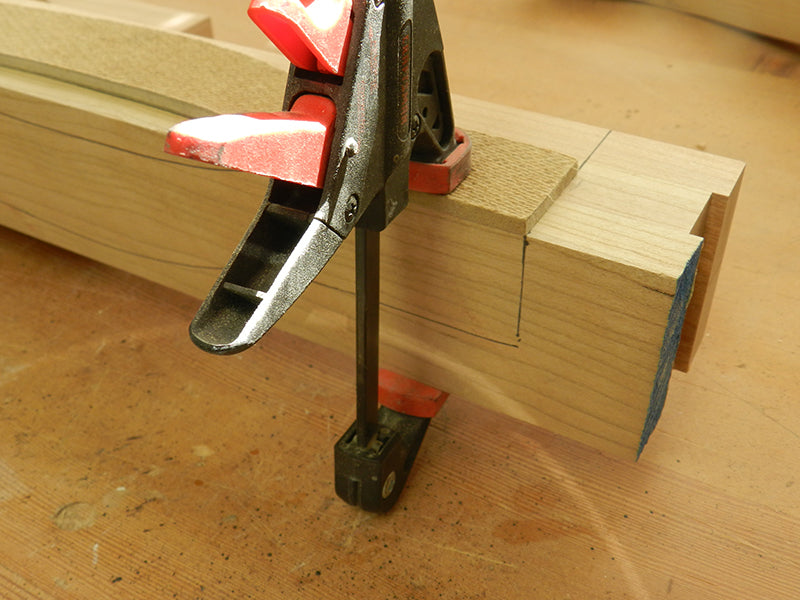

Lightly clamp the template to the work piece as shown in photo. The template is used on 2 faces of the work piece, and it is important to note that in order to obtain the correct curvature, the edges of the template eventually forming the joint surface, must meet at the same corner (refer to photo). Mark the 2 profiles meeting at the same corner, and then cut the legs to length.

The following video describes the preparations required for marking the cabriole profile.

It is of course important that the leg lengths are identical and to that end I use the table saw fence and the sled. Use a machinist's square to ensure the table saw blade is absolutely perpendicular with the bed plate, and using the sled, cut one end square and true. Then reverse the block, set the fence to exactly 28 1/2 inches (the exact length of the leg is 27 1/2 inches). Use a small block exactly 1 inch wide and insert between cut end of the fence. Move the sled to a pre-determined position (related to all 4 legs).

IMPORTANT: The 1 inch block must be removed before the cut is made.

The following video demonstrates the method for forming the cabriole shape using the band saw.

FAIRING THE ROUGH CUT FORMS OF THE PLANT STAND LEGS

Once the rough shape has been made on the band saw, we begin the fairing process. I use a spoke shave for fairing the contours (an excellent tool for this application). The next step is rather unorthodox, however it works very well. I lightly clamp the belt sander in the vice, and using 150 grit, smooth down all the compound curves. Following that, I use a 6 inch orbital sander to fine tune these curves, then finalize by hand using first 120 grit and then 220 grit sand paper.

The following video demonstrates the method of joining the upper and lower rails to the cabriole leg using suitable spacers and the extended distance gauge.

CLAMP CURVED LEG SECURELY FOR DRILLING

With reference to the previous video, as a consequence of the curvature of the legs, it is difficult to secure the leg in the vice. I therefore use gasket material and blocks, in conjunction with a bench top vice grip, to secure the leg whilst drilling.

DRILL DEPTH ADJUSTMENT

With respect to the top rail joint: in order to avoid fouling of drill holes, I adjusted the drill stop collar to allow 5/8 depth into the leg and 7/8 depth into the rail.

DETERMINE WIDTH OF PLANT STAND LOWER SHELF

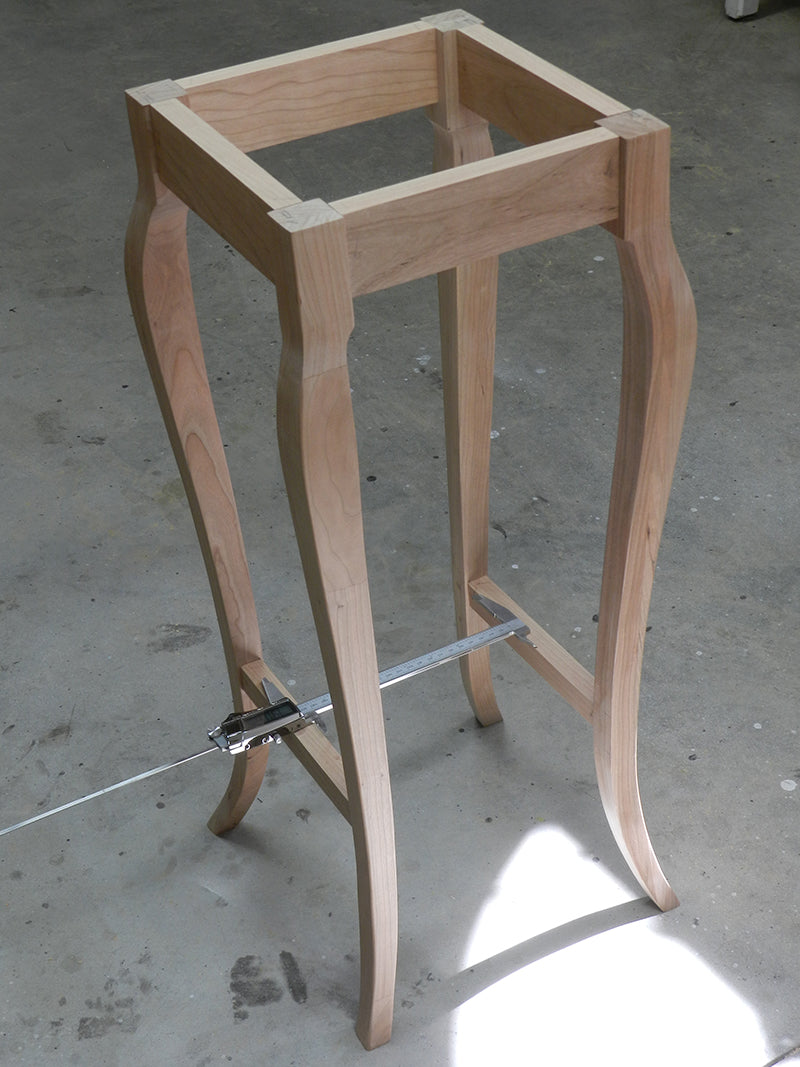

Dry fit the 4 upper rails and 2 lower rails, lightly clamp and square up components to determine width of lower shelf.

FAIRING CUPPED BOARDS FOR SHELF

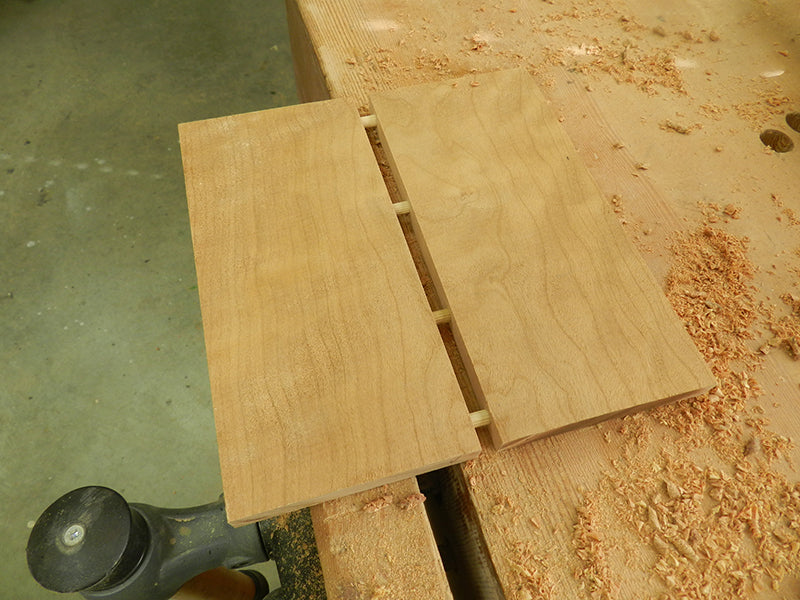

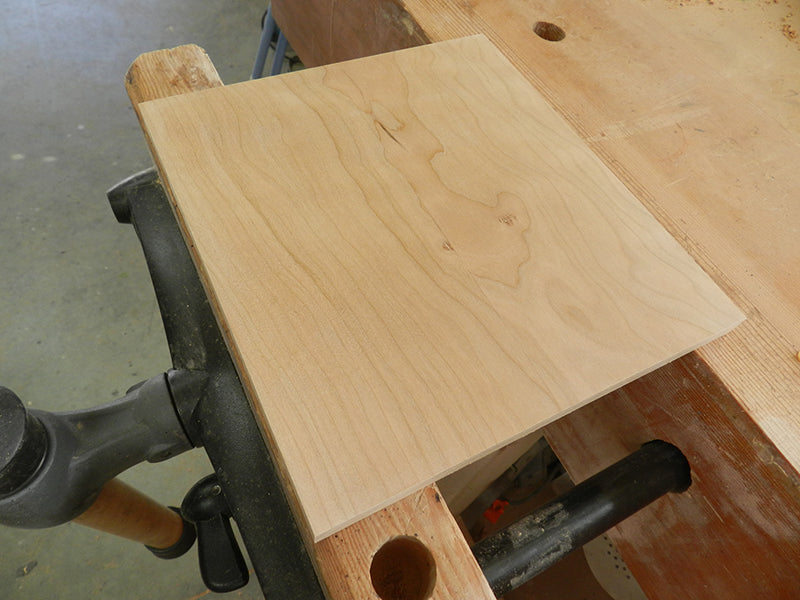

The shelf measures 1/2 x 8 x 8 inches. I found a piece of 12 inch cherry which seemed ideal, however when cutting the board, I discovered it was badly cupped and bowed. I decided to remove the distortion by cutting down the centre of the board, realigning the edges and refastening using 4 x 1/4 inch dowels. The shelf is 1/2 inch thick so in order to centre properly it was necessary to install the 1/8 inch spacer directly to the reference bracket.

DOWEL BORE ALIGNMENT

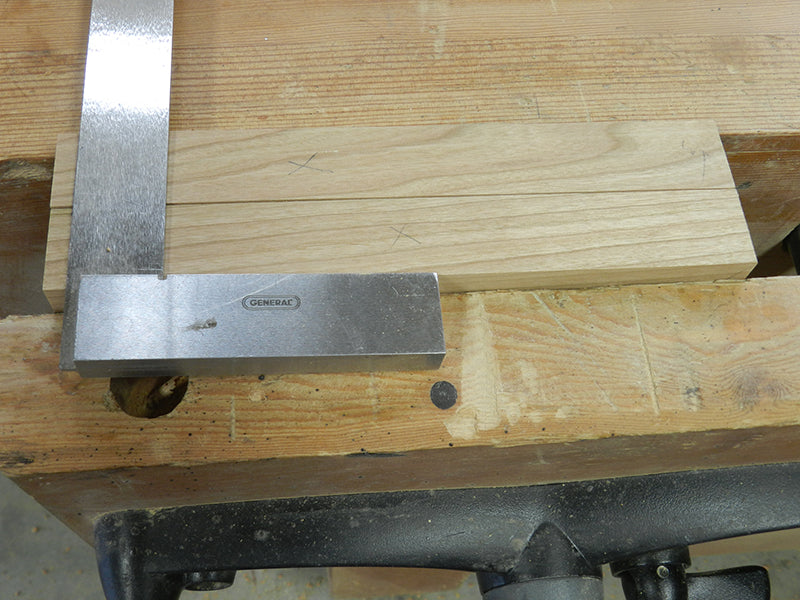

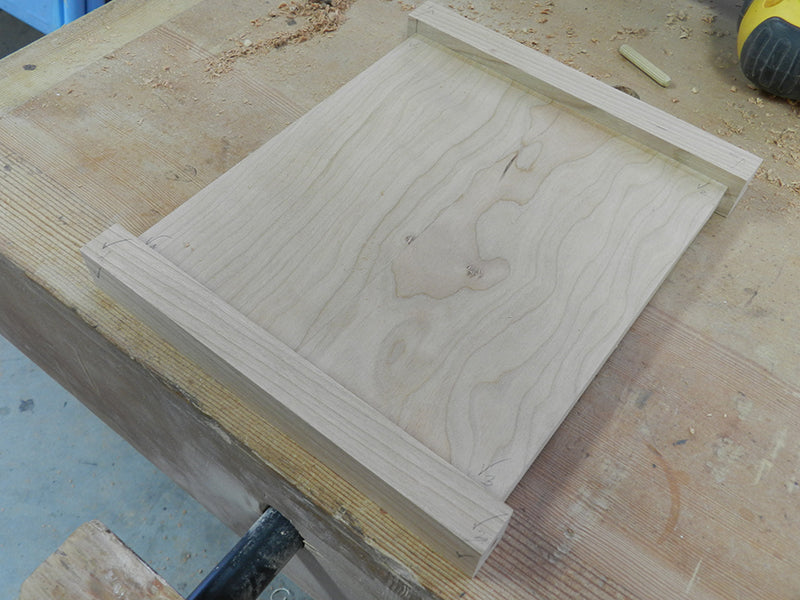

The length of the two lower rails is 7 7/8 inch and the width of the lower shelf is 7 3/8 inch, this of course leaves a differential of 1/4 inch at each end. Take the 2 rails and lightly clamp them together with the ends fair. Measure in from the left hand side 1/4 inch and scribe a mark on both faces. Use these marks to align Dowelmax.

NOTE: When aligning this way, ensure that the scribed line is on the surface to be drilled on both joints. Align Dowelmax to each line.

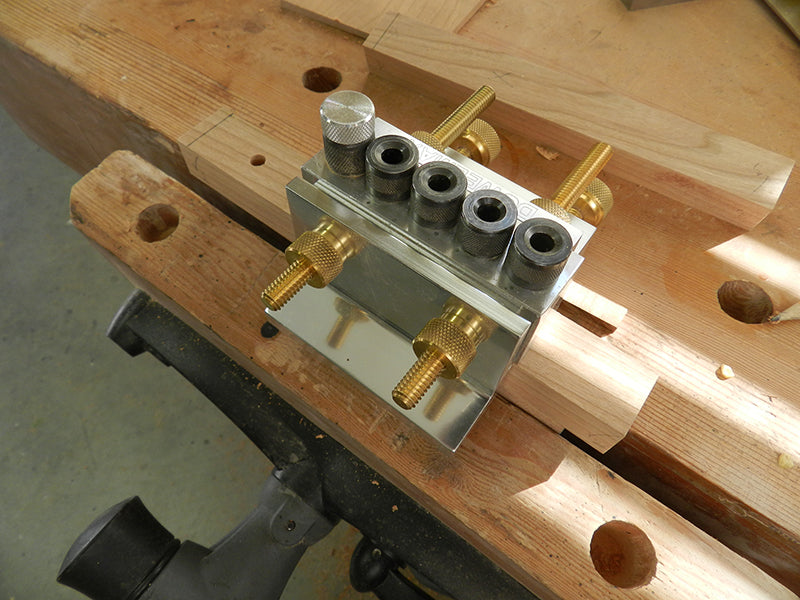

Use the 1/8 inch spacer to centre on the 1 inch rail, align to the pencil line and drill through 2 and 5. Loosen Dowelmax, move device along, insert indexing pin in last hole and again drill bore 5.

Repeat the process on the 1/2 inch shelf, carefully using the check marks and X's.

CENTERING FORMULA

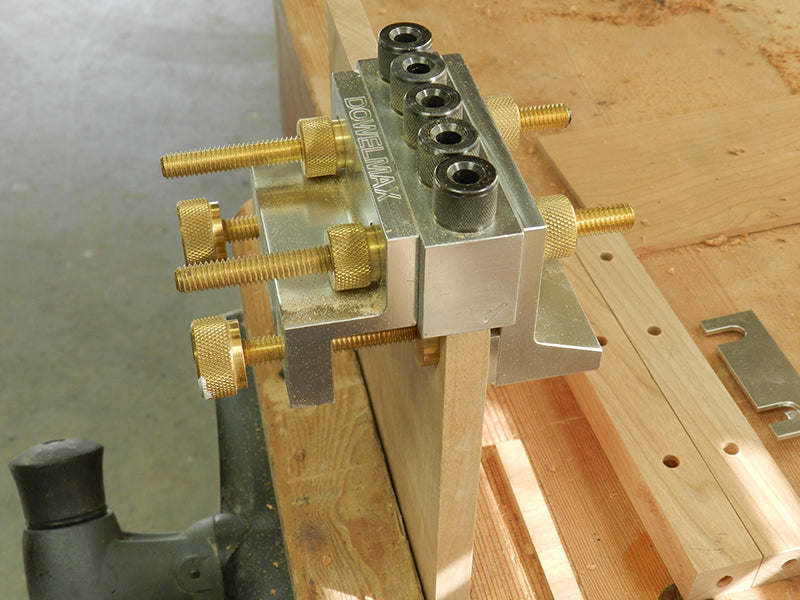

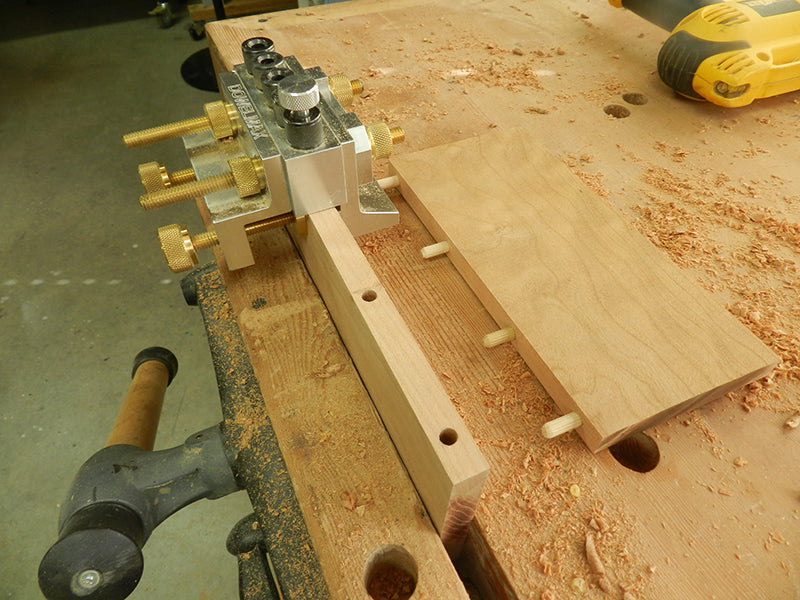

NOTE: Calculation for centring on the 1/2 inch wood: 1/2 inch ÷ 2 – 3/8 = minus 1/8 (a negative reading). Use the 1/8 slotted spacer and install on the face of the reference bracket. In other words: reduce the span of the Dowelmax rather than the usual process of increasing the span.

To avoid cutting dowels to required length, drill 5/8 inch into shelf rail and 7/8 inch into shelf.

OVERLAP TOP PLATE TO STAND

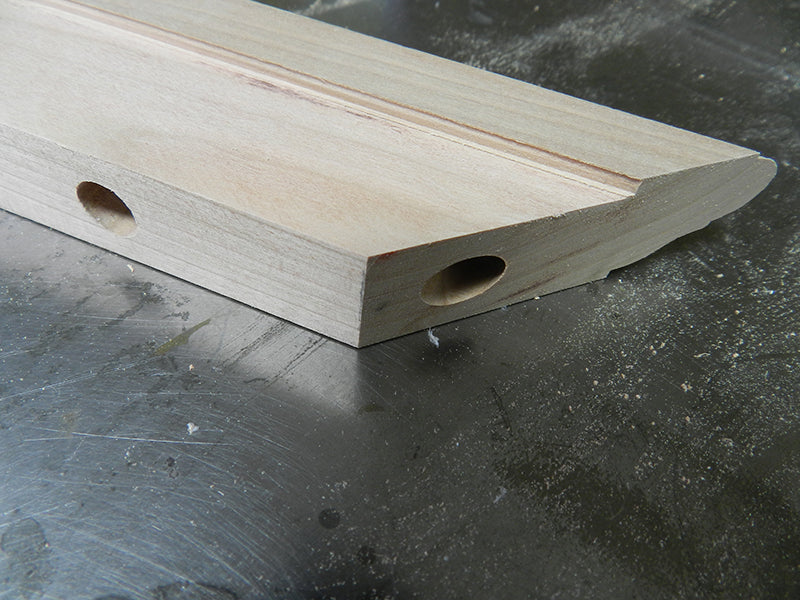

The full measurement of the plant stand top will be 12 1/4 inch x 12 1/4 inch. This provides an extension at each edge of 1 inch. The centre core of the top plate will be 3/4 x 10 1/4 x 10 1/4. The perimeter rail which will be mitred, will be 7/8 x 2 x 12 1/4 inch. Part of the perimeter rail will be recessed to allow an overlap of 1/8 inch when the top plate is in position on the stand.

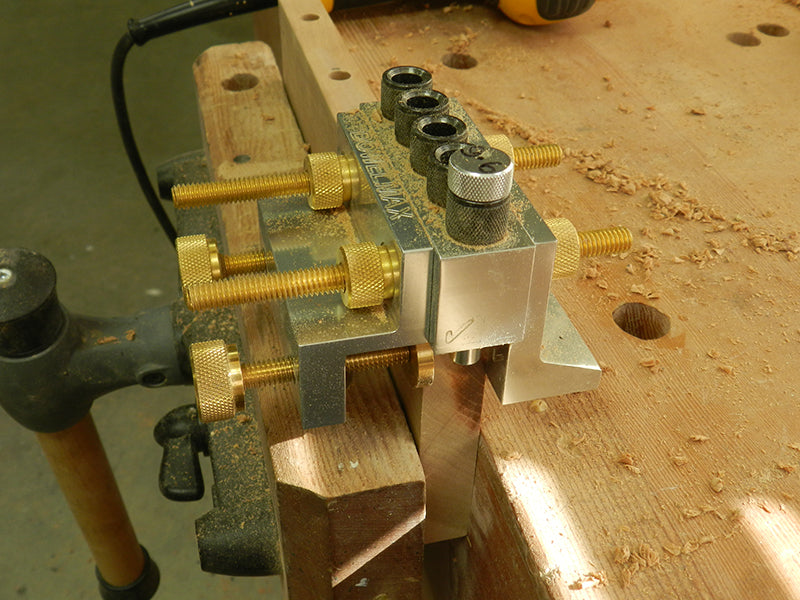

To construct the centre plate or core of the top, I am using 3 pieces of cherry, 2 of these are 3/4 x 4 1/8 x 10 1/4, and 1 strip will measure 3/4 x 2 x 10 1/4 inch. These plates will be joined at the centre using 8 – 3/8 x 1 1/2 inch dowels. Insert your reference marks and drill sequentially from check marks to opposite end. In this case I used the indexing pin for quick alignment to the end. Drill through guide 3, move Dowelmax horizontally, insert indexing pin and drill through guide 5. Repeat that process twice for the 2 remaining holes.

MILL EDGES FOR JOINING TOP PLATE BOARDS

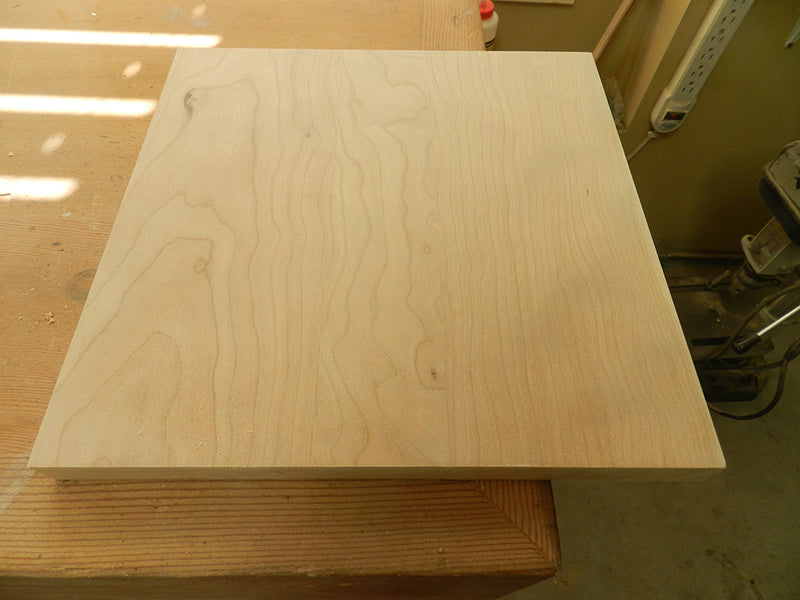

I don't have a jointer to prepare the edges prior to edge joining the 3 – 3/4 inch strips, so I use the table saw, making small 1/32 inch cuts, constantly rotating the pieces until a perfect match is attained. See photo of 3/4 x 8 5/8 x 8 5/8 centre core.

ROUTING DECORATIVE EDGES

The following video describes the method of routing the outer edges of the 4 mitred rails using the Dowelmax Router Lift.

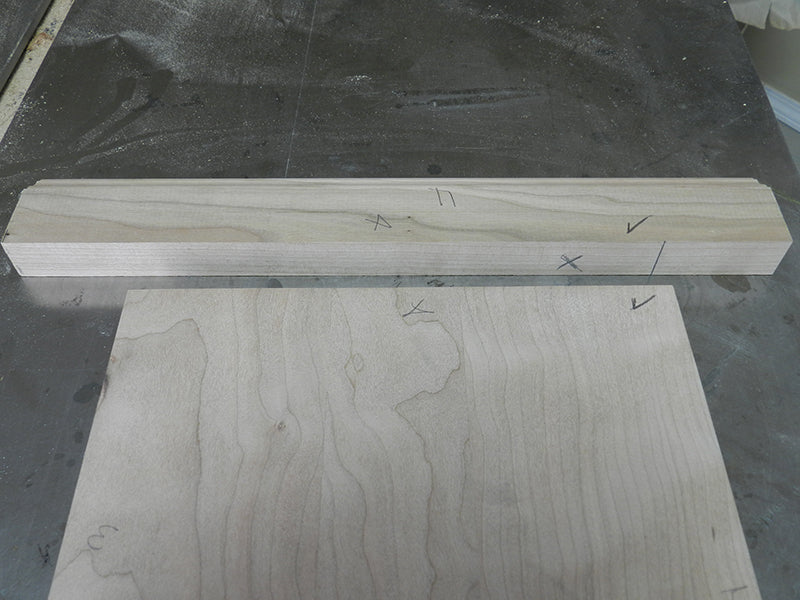

Preparing the top 2 inch strips: Once the 4 perimeter strips have been routed to create the decorative edge, references are marked to attach the rails to the centre core. The 4 corners are mitred attachments, and since the rails are 2 inches wide, 2 inches have to be left on each end of each rail to cut the mitre. Align the rail to the centre core, leave 2 1/8 inch projections at each end, and mark one reference end.

RECONFIGURE ARRANGEMENT TO ENSURE PARALLEL AXIS OF DOWEL BORES

It is normal practice when doing a mitre joint, to install the dowels perpendicular to the face. This is not possible with this type of configuration, in other words, to enable assembly to take place, the dowels on 2 of the 4 perimeter rails must be on the same axis.

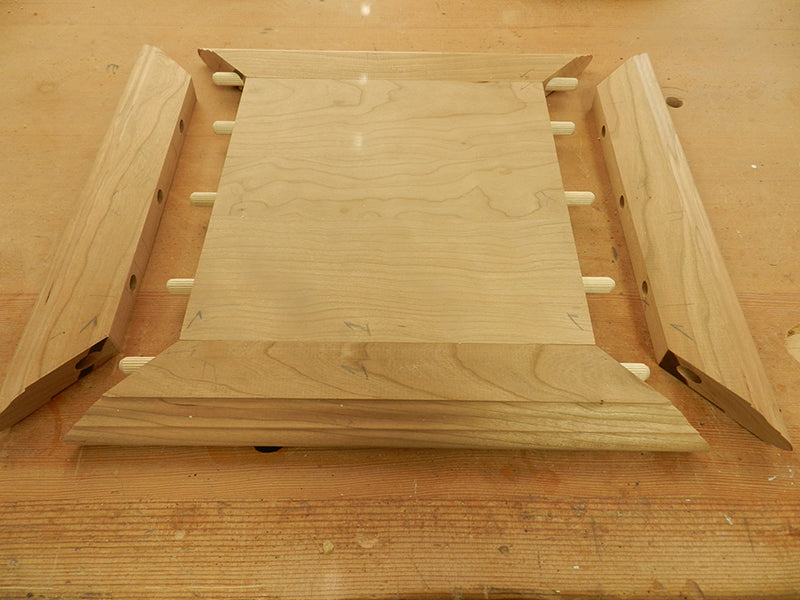

The following video is a simulated version and demonstrates the procedure for attaching the table top mitred rails to the centre core.

Remember, as a consequence of the accuracy of dowels, there is little room for error. To that end, ensure that the 45's mate properly and it is wise to use a test piece for the last mitred fitting.

You will recall that the thickness of the centre core is 3/4" and the thickness of the 4 perimeter rails is 7/8" to provide an overlap over the top end legs and rails.

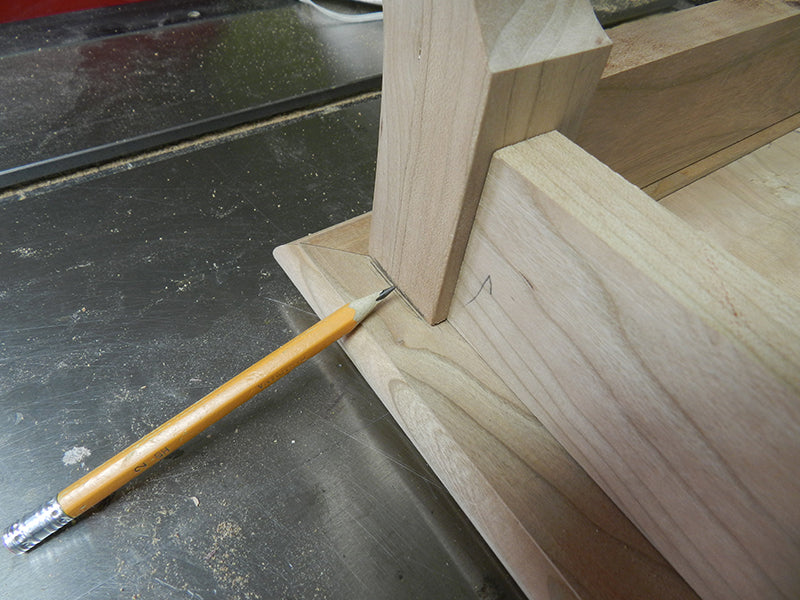

With the mitred rails dry fitted, turn the entire assembly upside down, centre on the underside of table top and mark position of each leg.

See dry fitted top plate assembly.

ADD DECORATIVE EDGE TO RAILS

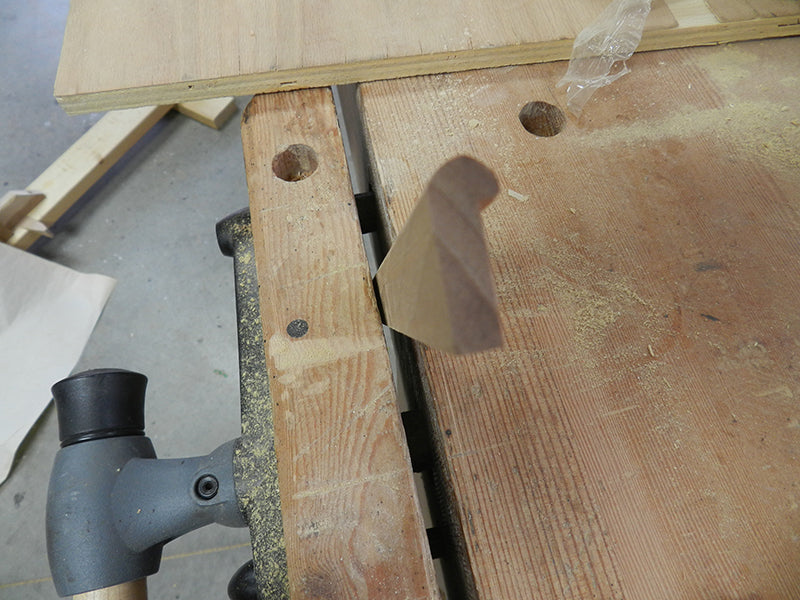

Since the upper rails or aprons are fairly plain, I like to add a simple moulding to the bottom edge. I milled 4 pieces 3/8 x 15/16 x 8 inches approximately 1/8 inch deep exposed ends. (The recess provides a clean edge against the rail.)

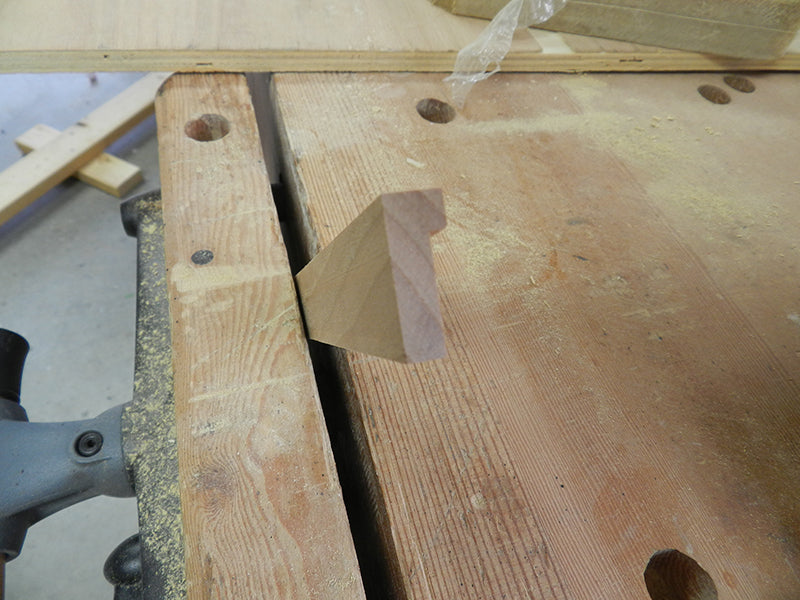

Make a vertical cut on the table saw to make the recess

Route the 2 outer edges to round corners.

FINISHING THE PROJECT

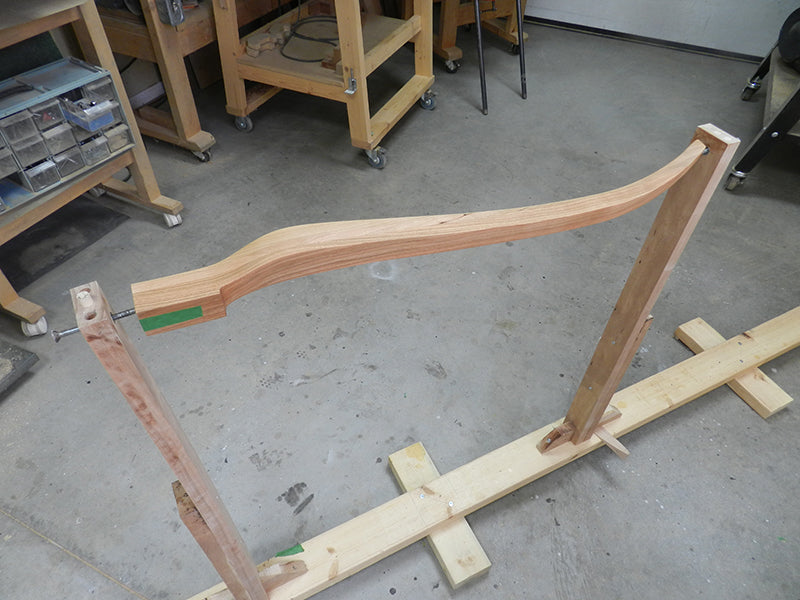

As with other projects, I prefer to prep, stain and refinish all the various components prior to assembly. I began with the cabriole legs, drilled the small dimple at each end, re-sanded the surfaces to 220 and covered the dowel holes and joint surfaces using painter's tape.

Apply a liberal coat of 3 to 1 methyl hydrate to shellac with the grain, rub in and allow to dry overnight.

Prep surface using superfine steel wool, then apply a coat of Dark Walnut (or stain of your choice). Leave overnight.

Apply a mixture of Dark Walnut and Espresso, ratio 1 to 1, then leave overnight.

If required, apply an additional coat of Espresso gel coat stain, rub in and remove excess, with the grain and again, leave overnight.
